Hyundai Elantra: Blower / Blower Unit Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Heating, Ventilation and Air Conditioning / Blower / Blower Unit Components and Components Location

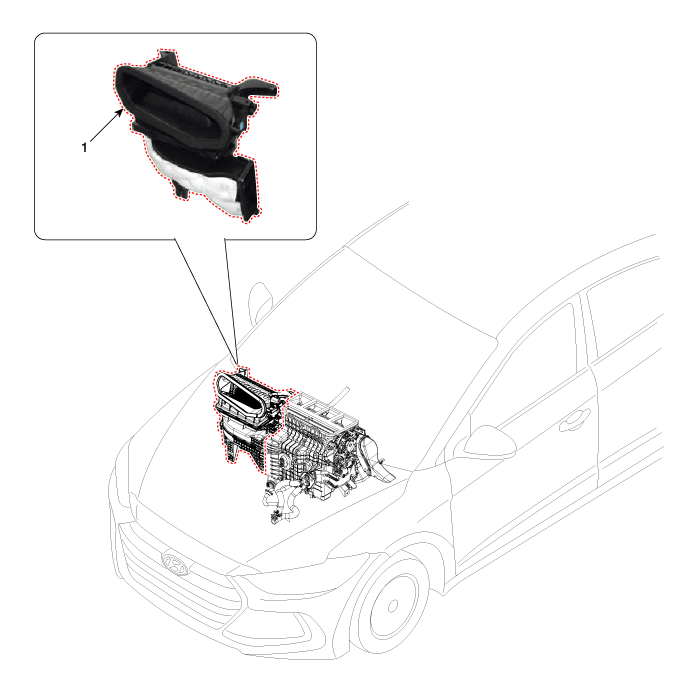

Component Location

1. Blower unit assembly

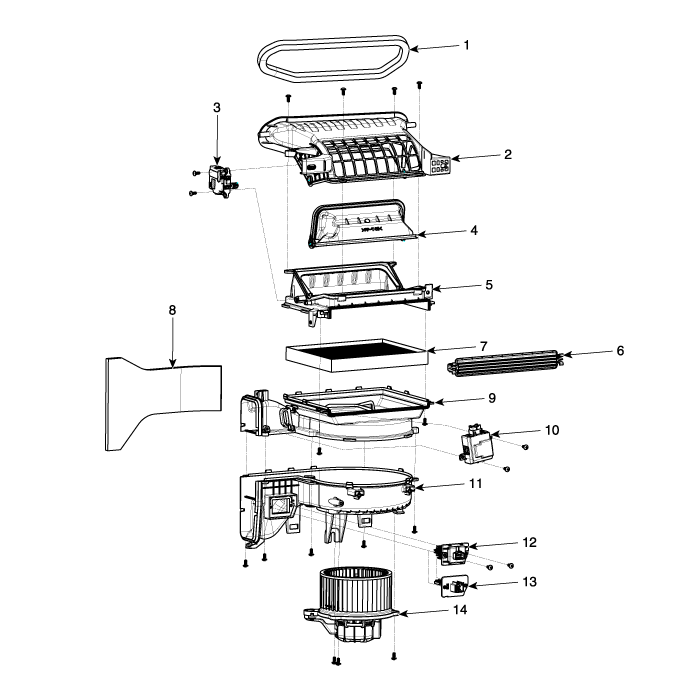

Components

1. Seal
2. Intake duct case
3. Intake actuator
4. Intake door
5. Intake duct case [A]
6. Air filter cover
7. Air filter

8. Blower unit pad
9. Blower upper case
10. Cluster ionizer
11. Blower lower case
12. Power mosfet
13. Resistor
14. Blower motor
