Hyundai Elantra: LCD display for transmission temperature and warning message / Transmission temperature gauge
![Hyundai Elantra. Transmission temperature gauge](images/transmission_temperature_gauge-4094/3890/hyundai_elantra_transmission_temperature_gauge_407.png)

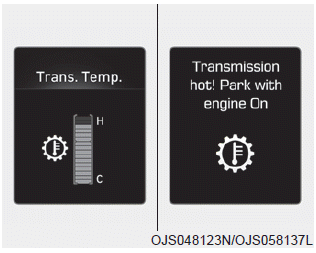

- Select trip computer mode on the LCD display and move to the transmission
temperature screen to see the temperature of the dual clutch transmission.
- Try to drive so that the temperature gauge do not show high/overheat. When
the transmission is overheated, the warning message will display on the LCD.
Follow the displayed message.
CAUTION
- Increase (high temperature) of the transmission temperature gauge usually
appears on an incline when the vehicle is stopped for a long time using accelerator
pedal, without depressing the brake pedal.
- To maintain the optimal transmission performance, drive so that the white
gauge is not exceeded (if equipped).

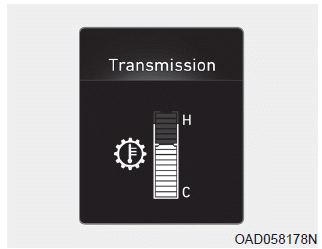

Normal (below marking 10)
![Hyundai Elantra. Transmission temperature gauge](images/transmission_temperature_gauge-4094/3890/hyundai_elantra_transmission_temperature_gauge_408.png)
- In order to maintain the optimal gear shift performance, drive so that the
temperature gauge is below the point (below marking 10).
Information
The temperature gauge may increase rapidly if clutch slip occurs excessively
due to repeated stop-and-go driving on steep grades and when Hill Hold is maintained
for a long time. In order to prevent excessive temperature increase, use the brake
during low speed driving or when stopping the vehicle on a hill.
Before entering High/Overheat (from marking 10 to 14)
![Hyundai Elantra. Transmission temperature gauge](images/transmission_temperature_gauge-4094/3890/hyundai_elantra_transmission_temperature_gauge_409.png)
- This zone shows that the dual clutch temperature of the DCT is before entering
the high/overheat zone. When the clutch temperature is within this zone (from
marking 10 to 14), drive minimizing the clutch slip so that the temperature
gauge is below the point (marking 10).
- If the dual clutch temperature continues to increase and reaches marking
14, the warning alarm sounds and the temperature gauge pops up on the cluster.
The DCT warning message is not displayed.

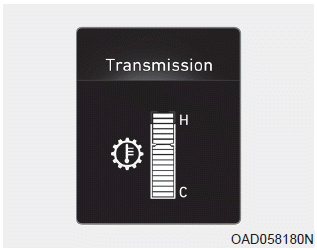

High/Overheat (from marking 15 to 16)
![Hyundai Elantra. Transmission temperature gauge](images/transmission_temperature_gauge-4094/3890/hyundai_elantra_transmission_temperature_gauge_410.png)
- This zone shows that the dual clutch temperature of the DCT has entered
the high/overheat zone. The DCT warning alarm sounds, warning message is displayed
on the cluster and the temperature gauge disappears from the cluster. Follow
the displayed warning message.
- To check the temperature status of the dual clutch when overheated, move
to the temperature gauge screen by selecting the trip computer mode. Then, you
can check the temperature status of the dual clutch.
Steep grade
This warning message is displayed when vehicle is driven slowly on a grade and
the vehicle detects that the brake pedal is not applied. Driving up hills or on
steep grades:
To h ...
