Hyundai Elantra: Towing / Dinghy Towing, Removable Towing Hook

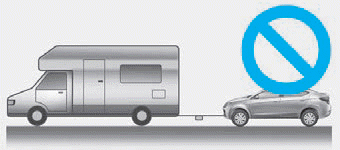

Dinghy Towing
Your vehicle is not designed to be dinghy towed (with 4 wheels on the ground) behind a motor home. To avoid serious damage to your vehicle, do not tow your vehicle with four wheels on the ground.
Removable Towing Hook
■ Front
1. Open the trunk, and remove the towing hook from the tool case.
2. Remove the hole cover pressing the lower part of the cover on the front bumper.
3. Install the towing hook by turning it clockwise into the hole until it is fully secured.
4. Remove the towing hook and install the cover after use.
Towing
Towing Service
If emergency towing is necessary, we recommend having it done by an authorized
HYUNDAI dealer or a commercial tow-truck service. Proper lifting and towing procedures
are necessar ...
Emergency Towing
If towing is necessary, we recommend you have it done by an authorized HYUNDAI
dealer or a commercial tow truck service.
If towing service is not available in an emergency, your vehicle may be te ...
